Ravel Beam Detector

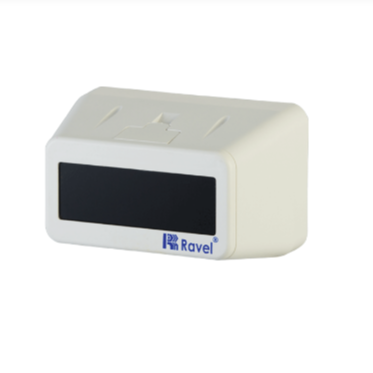

The RE-428 Series beam smoke detector is designed for smoke detection at the start of a fire. It is especially suitable for protection of indoor spaces, in which the appearance of smoke is likely during ignition of a fire, and where, due to a large space area, installation of a greater number of point smoke detectors would be necessary. The RE-428 Series beam smoke detector and the prism reflector or reflector panel are installed on opposite walls of a room.
- CATEGORY: Fire Fighting Equipments
- SUB CATEGORY: Fire Alarm
- Description
Description
Description
- User Friendly Installation
- In built laser light for easy alignment
- Supports 5 to 50 meter range
- Option for Remote Indication
- Adjusting Screws at detector for precise alignment
- Infrared transmitter & receiver located in a single housing
- In built drift compensation for monitoring dirt build up on the optical system
- Sensitivity Threshold :- 18% ,30%, 50%
